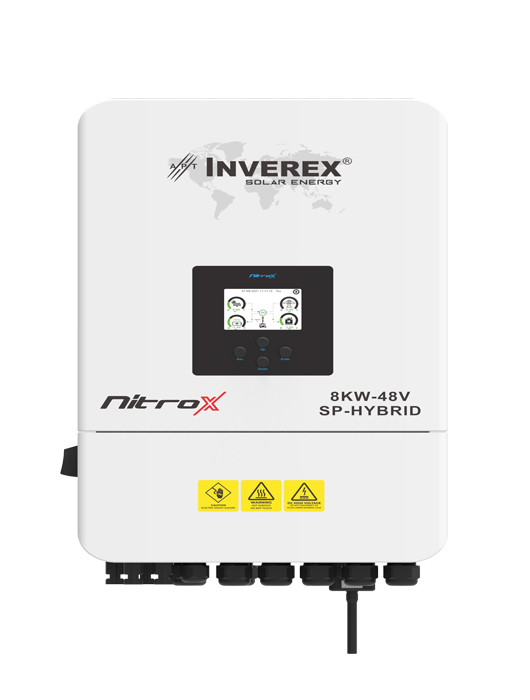

Inverex Nitrox 8 KW 48V Single Phase, Dual Output, IP 65, Wall Mounted, 5 Years Warranty Hybrid Inverter Price in Pakistan

DescriptionTechnical specification of  Inverex Nitrox 8KW Hybrid Solar InverterModelInverex Nitrox Series  8000 Watts – 48VBattery TypeLead Acid or Lithium-ionBattery Voltage Range (V)40 ~ 60Max. Charging Current (A)190Max. Discharging Current (A)190External Temperature SensorsOptionalCharging Curve3 Stages / EqualizationCharging Strategy for Li-ion BatterySelf-adoption to BMSMax DC Input Power (W)10400 WattRated PV input Voltage370 (125 ~ 500)Startup Voltage (V)125MPPT Voltage Range (V)150 – 425Full Load DC Voltage Range (V)200 -425PV Input Current (A)26 26 AMax. PV ISC (A)34 34 ANumber of MPPT / Strings Per MPPT2/2 2Rated  AC Output & UPS Power8000Max. AC output Power (W)8800AC output Rated Current36.4/34.8 AMax. AC Current (A)40/38.3AMaximum Continous AC Passthrough (A)50Peak Power(off-grid)2 times of rated power, 10 SPower Factor 0.8 leading to 0.8 laggingOutput Frequency and Voltage50/60 Hz; 220/230 Single PhaseGrid TypeSingle PhaseDC injection Current (ma)THD<3% (liner load < 1.5%)Max. Efficiency97.6%Euro Efficiency96.50%MPPT Efficiency>99%Transfer Time4msIntegratedPV arc fault detection, PV input lightning protection, Anti-Islanding protection, PV String Reverse polarity Protection, Insulation resistor detection, Residual current monitoring unit, output over current protection, output shorted protection, and Surge Protection.Grid RegulationEN50549, AS4777.2, VDE0126, IEC61727, VDEN 4105, G99, NBT 32004, CEIO-21, NRS097, NBR 16149/16150, RD 1699Safety EMC/ StandardIEC62109-1/-2, EN 61000-6-1, EN 61000-6-2, EN61000-6-3, EN 61000-6-4Operating Temperature Range (°C)-45 ~ 60°C, > 45°C deratingCoolingSmart coolingNoise  (DB)<30 dbCommunication with BMSRS 485, CANWeight20.5 KGSize330 W × 580 H ×  232DProtection DegreeIP 65Installation StyleWall MountedWarranty5 Years (T&C)  Download Datasheet of Inverex Nitrox 8KW
