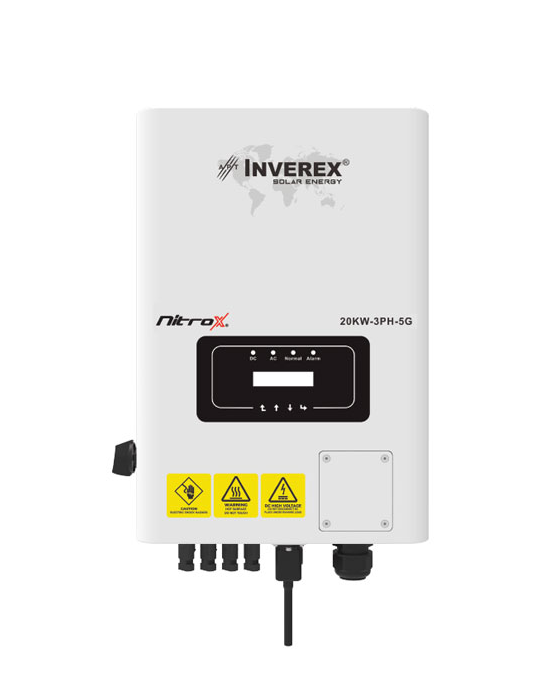

Inverex Nitrox 20 KW 3 Phase Dual MPPT IP 65 OnGrid Solar Inverter Price in Pakistan

DescriptionModelInverex Nitrox Series  20000 Watts –  3 Phase On GridMax.DC Input Power (kW)26Max. DC Input Voltage (V)1000Startup DC Input Voltage (V)250MPPT Operating Range (V)200~850Max.DC Input Current (A)32 32Max.Short circuit Current (A)48 48Number of MPPT/ Strings Per MPPT2/2Rated Output Power (KW)20Max. Active Power (KW)22Nominal Output Voltage/Range (V)3L/N/PE 380V-323V-418V,400V/340V-440VRated Grid Frequency (Hz)50-60 OptionalOperating Phase3 PhaseRated AC Grid Output Current (A)29Max. AC Output Current31.9Output Power Factor0.8 leading to 0.8 laggingGrid Current THD<3� Injection current (ma)<0.5%Grid Frequency Range47 ~ 52 or 57 ~ 62 OptionalMax. Efficiency98.6%Euro- Efficiency97.8%MPPT Efficiency>99� Reverse Polarity Protection YesAC Short circuit protectionYesOutput Overvoltage ProtectionYesInsulation Resistance ProtectionYesGround Fault MonitoringYesAnti-Islanding ProtectionYesTemperature ProtectionYesIntegrated SwitchYesRemote Software UploadYesRemote Change of Monitoring ParametersYesSurge ProtectionDC Type II AC Type IISize362 W × 527 H ×  220DWeight20KGTopologyTransformerlessInternal Consumption<1W (Night)Running Temperature-25~65°C, >45°C deratingIngress ProtectionIP 65Noise Emission< 45dbCooling ConceptSmart CoolingMax. Operating Altitude With Derating2000mDesigned LifeTime>20 yearsGrid Connection StandardCEI 0-21, VDE-AR-N 4105, NRS 097, IEC 61727,G99, G98,VDE 0126-1-1, RD 1699,C10-11Operating Surroundings Humidity0-100%IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2Safety EMC /StandardIEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2DC ConnectionMC-4 metableAC ConnectionIP 65-rated plugDisplayLCD 1602InterfaceRS485/RS232/Wifi/LANWarranty10 Years Warranty, 5 Years replacement warranty (T&C)
