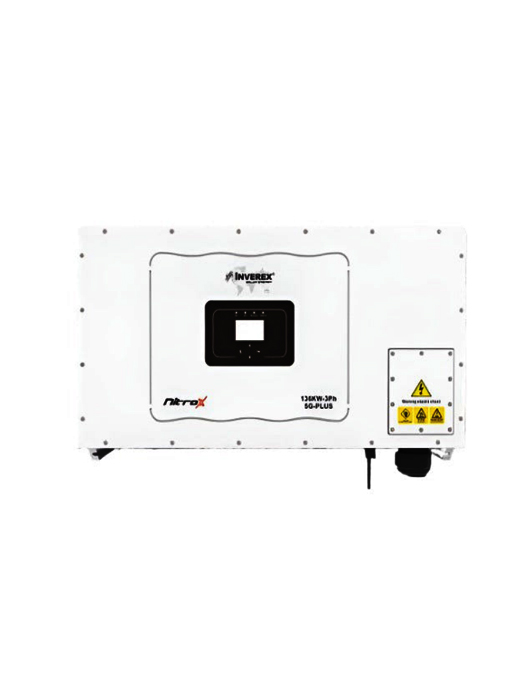

Inverex Nitrox 136 KW 3Ph 5-G On Grid Solar Inverter Price in Pakistan

DescriptionModelInverex Nitrox Series  136 KW – 3 Phase On GridMax. PV Input Power (kW)204Max. PV Input Voltage (V)1100Start-up Voltage (V)250MPPT Voltage Range (V)200~1000Related PV Input Voltage (V)600Max. Operating PV Input Current(A)40 40 40 40 40 40 40 40Max input short circuit Current (A)60 60 60 60 60 60 60 60No of MPPT Trackers/No of Strings per MPPT Trackers8/4 4 4 4 4 4 4 4Rated AC Input/Output Active Power (KW)136Max. AC Input/Output Apparent Power (kVA)136Rated AC Input & Output Current (A)206.1/197.2Max AC Input/Output Current (A)206.1/197.2Rated Input/Output Voltage/Range V220/380, 230/400 0.85 Un- 1.1 UnGrid Connection Form3L/N/PERated Input/Output Grid Frequency /Range(Hz)50/45-55,60/55-65Power Factor Adjustment Range0.8 leading to 0.8 lagging <3%Total Current Harmonic Distortion THDi<3� component of Grid<0.5%InMax. Efficiency98.8%Euro- Efficiency98.2%MPPT Efficiency>99� Polarity Reverse ConnectionProtection YesAC Output Over Current ProtectionYesAC Output Overvoltage ProtectionYesAC Output short Circut protectionYesThermal ProtectionYesDC Terminal Insulation Impedance MonitoringYesPower Network MonitoringYesIsland Protection MonitoringYesEarth Fault DetectionYesOvervoltage load drop protectionYesResidual current Detection (RCD)YesSurge ProtectionDC Type II AC Type IIOperating Temperature Range (°C)-25~60°C, >45°C DeratingWeight103 KGPermissible Ambient Humidity0-100%Inverter TopologyNon-IsolatedOver Voltage CategoryOVC II (DC), OVC II (AC)Ingress ProtectionIP 65Noise Emission< 65 db (A)Type of CoolingIntelligent air coolingMax. Operating Altitude With Derating4000mCabnet size (W*H*D mm)1006 × 516 × 325.6 (Excluding Connectors and Brackets)Grid Connection Standard IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Ritchline R25, G99, VDE-AR-N 4105Safety EMC /StandardIEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2Warranty10 Years Warranty, 5 Years replacement warranty (T&C)inverex-nitrox-136kw-3ph-on-gird-inverter
