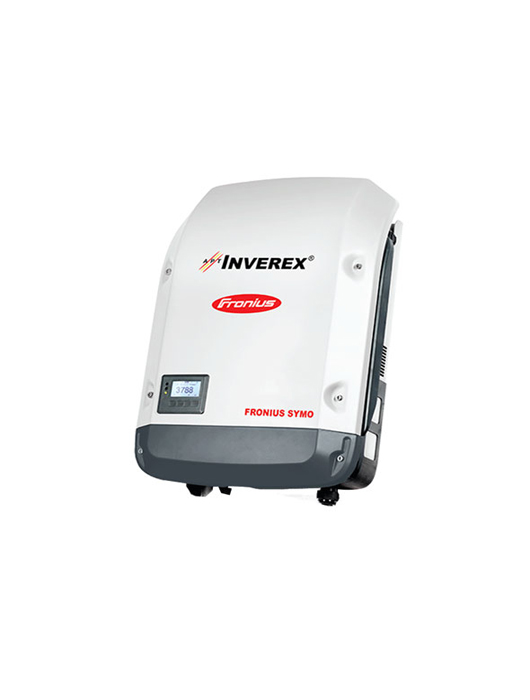

Inverex Fronius Symo 5 KW IP 65 On Grid Solar Inverter Price in Pakistan

DescriptionWith power categories ranging from 5.0 to 20.0 kW, the transformerless Fronius Symo is the three-phase inverter for systems of every size. Owing to the Super Flex Design, the Fronius Symo is the perfect answer to irregularly shaped or multi-oriented roofs. The standard interface to the internet via WLAN or Ethernet and the ease of integration of third-party components make the Fronius Symo one of the most communicative inverters in the market. Furthermore, the meter interface permits dynamic feed-in management and a clear visualization of the consumption overview.Snap Inverter TechnologyIntegrated Data CommunicationSmart Grid ReadyDynamic Peak manageZero Feed-In5 Years Warranty Input DataInverex Fronius SYMO 5 KW Number of MPP Trackers2Max. Input Current (I dc max MPPT1/MPPT2)16 A / 16 AMax. array short circuit current  (MPPT1/MPPT2)31 A /31 ADC input voltage range (U dc min – U dc max)150 – 1000 VNominal Input Voltage (U dc,r)200 VFeed-in Voltage (U dc start)80 VUsable MPP Voltage Range150 V – 800VNumber of DC Connections (MPPT1/MPPT2)2 2Max. PV generator output (Pdc max)10 kW peakAC nominal output5000 WattMax. output power5000 VAMax. output current7.2 AGrid Connection (Voltage range)3~NPE 400 V /230 V or 3 ~NPE 380 V / 220 V ( 20 % / -30%)Frequency (Frequency Range)50 Hz / 60 Hz  (45 Hz – 65 Hz)Total Harmonic distortion< 3 %Power Factor0.8 -1 ind./ cap.Dimensions(width*hight*depth)645 x 431 x 204 mmWeight (Inverter with packaging)19.9Degree of protectionIP 65protection class1Nighttime power loss< 1 WOvervoltage category (DC/AC)2/3Inverter designTransformerlessCoolingRegulated Air coolingInstallationIndoor-outdoor installationAmbient temperature range-25 – 60 °Cpermitted humidity0-100 %Noise Emission< 47 dB (A)Max Altitude2000 m / 3400m (unrestricted/restricted voltage range)DC PV connection technology4x DC 4x DC Push in spring terminals 2.5 – 10 mm²DC Battey connection technology1x BATT and 1x BATT Push in terminals 2.5 – 16 mm²AC connection technology5 Pole AC Push in terminals 1.5 – 16 mm²Certificates and compliance with standardsÖVE / ÖNORM E 8001-4-712, DIN V VDE 0126-1-1/A1, VDE AR N 4105, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 3100, AS 4777-2, AS 4777-3, CER 06-190, G98, G99, UNE 206007-1, SI 4777, CEI 0-21, NRS 097Backup power functionsPV point or Full BackupCompatible batteriesBYD- Battery-Box premium HVS/HVM 5)Max. efficiency98%Europ. efficiency97.3%MPP- tracking efficiency>99.9� insulation measurementYesoverload behaviorOperating point shift. Power limitationDC disconnectorYesReverse polarity protectionYesWLAN /2x Ethernet LANFronius solar. web, Modbus TCP Sun SPec, Fronius Solar  API (JSON)6x digital in/out 6x digital inInterface to ripple control receiver, energy managementUSB 2.0 (2-socket)Datalogging, inverter update via USB flashSignalling outputEnergy management (Potentially free relay outputDatalogger and webserverIncluded2x RS422 (RJ 45 socket)Fronius Solar netExternal InputSo-meter interface / Input for over-voltage protectionRS 485Modbus RTU Sun Specs or meter connection
