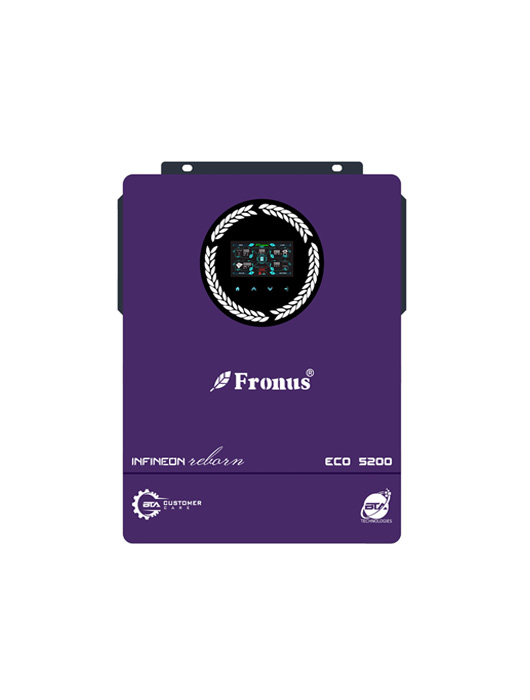

Fronus Infineon Reborn PV 5200 4.2 KW IP 21 Hybrid Solar Inverter Price in Pakistan

DescriptionUpgraded MPPT Chipset (upgraded to the latest chipset that is more efficient and reliable)Control with Wi-Fi (Control inverter remotely with mobile application)Anti-dust kit protects inverter from dust particles80Ampere max PV chargingLithium-ion battery compatiblePure sine Wave (Produce smooth waveform)Fronus PV-5200-Infineon-Reborn DatasheetModelFronus Infineon Reborn PV5200 4.2KWMaximum PV Input Power5200WattRated Output Power4200W/4200VAOutput Voltage WaveformPure Sine WaveOutput Voltage Regulation230VAC ±5%Output Frequency50HzPeak Efficiency93%Overload Protection3s@≥150% Load 5s@100%~150 LoadSurge Capacity8400 Watt for 5sNominal DC Input Voltage24VdcCold Start Voltage23VdcHigh DC Recovery Voltage29vdcHigh DC Cut-Off Voltage32VdcNo Load Power Consumption<30WFull Load4200WMaximum Main Load4200WMaximum Second Load Upto(Battery Mode)1386WMain Load Cutt-Off Voltage24VDCMain Load Return Voltage27VDCCharging Algorithm3-StepAC Charging Current (Maximum)100A (@V1/P = 230Vac)Bulk Charging VoltageFlooded Battery AGM/Gel Battery29.2 28.2Floating Charging Voltage27VdcMaximum PV Array Power5200WNominal PV Voltage240VdcPV Array MPPT Voltage Range60Vdc~400VdcMax PV Array Open Circuit Voltage500VdcMaximum Charging Current120ANominal Output Voltage220/230/240VACFeed-In Grid Voltage Range195!253VACFeed-In Grid Frequency Range49~51±1Hz / 59~61±1HzNominal Output Current15.7APower Factor Range>99Maximum Conversion Efficiency (DC/AC)97%Input Voltage WaveformSinusoidal (Utility or Generator)Nominal Input Voltage230VacLow Loss Voltage170Vac ±7V (UPS) 90Vac ±7V (Appliances)Low Loss Return Voltage180Vac ±7V (UPS) 100Vac ±7V (Appliances)High Loss Voltage280Vac±7VHigh Loss Return Voltage270Vac±7VMaximum AC Input Voltage300VacNominal Input Frequency50Hz / 60Hz (Auto Detection)Low Loss Frequency40±1HzLow Loss Return Frequency42±1HzHigh Loss Frequency65±1HzHigh Loss Return Frequency63±1HzOutput Short Circuit ProtectionCircuit BreakerEfficiency (Line Mode)>95% (Rated R Load, Battery Full Charged)Transfer Time10ms For UPS 20ms For ApplianceSafety CertificationCEOperating Temperature Range-10˚C to 50˚CStorage Temperature-15˚C to 60˚CHumidity5% to 95% Relative Humidity (Non-Condensing)Dimensions (D*W*H) mm420*350*120Net Weight (KG)9
