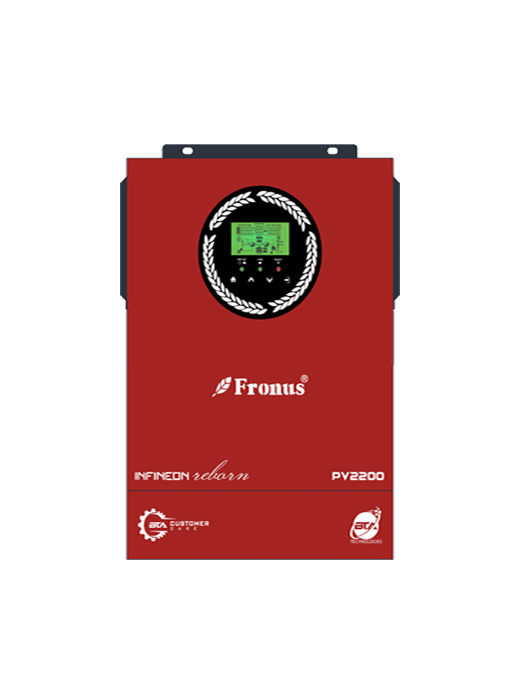

Fronus Infineon Reborn PV 2200 1.6KW IP21 Hybrid Solar Inverter Price in Pakistan

DescriptionUpgraded MPPT Chipset (upgraded to the latest chipset that is more efficient and reliable)Control with Wi-Fi (Control inverter remotely with mobile application)Anti-dust kit protects inverter from dust particles80Ampere max PV chargingLithium-ion battery compatiblePure sine Wave (Produce smooth waveform) ModelFronus Infineon Reborn PV2200 1.6KWRated Output Power2000VA/1500 WattOutput Voltage WaveformPure Sine WaveOutput Voltage Regulation230VAC ±5%Output Frequency50HzPeak Efficiency94%Overload Protection5s@≥150% Load 10s@100%~150 LoadSurge Capacity2x Rated Power For 5sNominal DC Input Voltage12VdcCold Start Voltage11.5VdcHigh DC Recovery Voltage14VdcHigh DC Cut-Off Voltage16VdcNo Load Power Consumption<25WCharging Algorithm3-StepAC Charging Current (Maximum)60A (@V1/P = 230Vac)Bulk Charging VoltageFlooded Battery AGM/Gel Battery14.6 14.1Floating Charging Voltage13.5VdcMaximum PV Array Power2000WNominal PV Voltage240VdcPV Array MPPT Voltage Range30Vdc~400VdcMax PV Array Open Circuit Voltage400VdcMaximum Charging Current80AInput Voltage WaveformSinusoidal (Utility or Generator)Nominal Input Voltage230VacLow Loss Voltage170Vac ±7V (UPS) 90Vac ±7V (Appliances)Low Loss Return Voltage180Vac ±7V (UPS) 100Vac ±7V (Appliances)High Loss Voltage280Vac±7VHigh Loss Return Voltage270Vac±7VMaximum AC Input Voltage280VacNominal Input Frequency50Hz / 60Hz (Auto Detection)Low Loss Frequency46±1HzLow Loss Return Frequency47±1HzHigh Loss Frequency54±1HzHigh Loss Return Frequency53±1HzOutput Short Circuit ProtectionCircuit BreakerEfficiency (Line Mode)>95% (Rated R Load, Battery Full Charged)Transfer Time10ms For UPS 20ms For ApplianceSafety CertificationCEOperating Temperature Range-10˚C to 50˚CStorage Temperature-15˚C to 60˚CHumidity5% to 95% Relative Humidity (Non-Condensing)Dimensions (D*W*H) mm36*270*100Net Weight (KG)4.4 Fronus Infineon Reborn PV-2200 Datasheet
