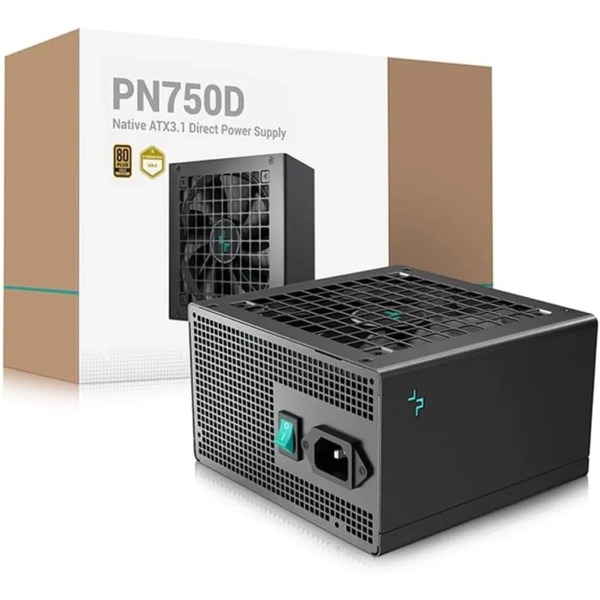

DEEPCOOL PN750D 750W ATX 3.1 PCIe 5.1 80 GOLD NON-MODULAR PSU

DEEPCOOL PN750D 750W ATX 3.1 PCIe 5.1 80 GOLD NON-MODULAR PSUThe DeepCool PN750D is a new non-modular power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standards. With a dedicated 12V-2×6, 2 EPS, and 3 PCIe connectors, the PN750D provides stable power for a wide range of modern high-power components.GRACEFUL GOLD 80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.POWER YOU CAN TRUST Through the use of a premium main electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN750D can keep the hold-up time to = 16 ms under a high load of 80%.PCI-E 5.1 POWER Equipped with a high-grade 105C-resistant 16AWG copper-core embossed 12V-2×6 cable, the PN750D provides up to 450W for modern GPUs.DYNAMIC HYDRO BEARING FAN The PN750D comes equipped with a dynamic 120mm hydro bearing fan that will adjust its speed based on the cooling needs of the PSU.PEACE OF MIND The PN750D comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP. Over Power Protection Over Voltage Protection Short Circuit Protection Over Temp Protection Over Current Protection Under Voltage Protection No Load Operation Surge & Inrush ProtectionEXCELLENT COVERAGE The PN750D is engineered and manufactured at such a high level that DeepCool is offering a lengthy 10 years of trouble-free limited warranty coverage.SpecificationsType ATX12V V3.1Product Dimensions 150 x 140 x 86mm (W x L x H)Efficiency certification 80Plus GoldFan Size 120mmFan Bearing HYB (Hydro Bearing)Topology Active PFC Full Bridge SRC LLC DC to DCCapacitors Chinese Electrolytic CapacitorsPower Good Signal 100-150msHold Up Time =16ms(80% Load)Efficiency =90% Under Typical Load(50% Loading)Connections Power 20 4 Pin x1 EPS 8-Pin x 2 PCIe 12 4-Pin 12VHPWR x 1 PCIe 6 2-Pin x 3 SATA x 8 Molex 4-Pin x 2Protection OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLOOperation Temperature 0 – 40?Regulatory CE/FCC/CCC/TUV-RH/cTUVus/RCM/EACErp Regulation ErP 2014Environment Protection WEEE/?? RoHS/Triman/P65MTBF 100,000 Hours SKU: 16299 Categories: Components, Power Supplies
