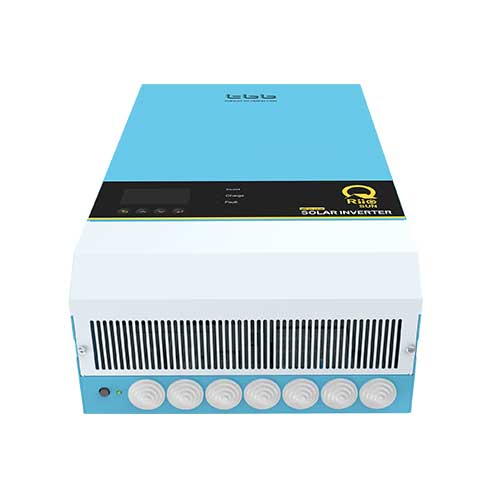

TBB Riio Sun II 6kVA 48V Hybrid Pure Sinewave Solar Inverter

The TBB 6Kva Riio Sun is a powerful all in one solar inverter integrated with multiple functions, including a high-performance true sine wave inverter, a powerful battery charger, a MPPT charge controller rated 90A- 6000 watts, and a high-speed automatic transfer switch. RiiO Sun all in one solar inverter can be used in multiple applications. With a simple setting, you can compose a DC coupling system, solar hybrid system or power backup system. Its distinguishing surge capability makes it capable to power most of demanding appliances, such as fridge, freezer, water pump and air-conditioner, etc. Under the generator mode, with the function of power assist & power control, RiiO Sun can automatically adjust its charging current to protect the grid or the generator from overload. It can also work as the supplement source to the generator or grid once the temporary peak power appears. Product Features All-in-one design for easy installation and reduced hardware costs Ideal for DC Coupled PV Systems, power backup system, solar hybrid system. Transformer-based design and high surge capacity for all kinds of heavy loads Build in MPPT solar charge controller to maximize the use of solar energy Ultra-short transfer time (0-4ms) to protect mission-critical loads like server and ATM Built-in ECO mode to prolong the battery backup time (45% energy saving at max) Power assist function enables limited AC to power heavy loads Compatible with mainstream lithium battery brands TBB premium battery charging management Built-in battery SOC estimation Equalization charging program available for flooded and OPzV battery Extremely high inverter efficiency of up to 94% Extremely high MMPT efficiency upto 98% Remote monitoring and control via NOVA web & App Fully programmable via app TECHNICAL PARAMETERS   Model RiiO Sun II 2KVA-M RiiO Sun II 3KVA-M RiiO Sun II 3KVA-S RiiO Sun II 4KVA-S RiiO Sun II 5KVA-S RiiO Sun II 6KVA-S Power Assist Yes AC input range 175~265 VAC (45~65 Hz) AC input Current (transfer switch) (A) 32 32 32 32 50 50 Inverter   Nominal battery voltage (V) / Input voltage (V) 24 / 21~34 48 / 42~68 AC output voltage (VAC) 220/230/240 ± 2% AC output Frequency (Hz) 50/60 ± 0.1% Harmonic distortion <2% Load Power factor 1.0 Cont. output power at 25°C (VA) 2000 3000 3000 4000 5000 6000 Max output power at 25°C (W) 2000 3000 3000 4000 5000 6000 Peak power (W) 4000 6000 6000 8000 10000 12000 Surge 300% Maximum efficiency 91% 91% 93% 93% 94% 94% Zero load power (W) 13 17 17 19 22 25 Charger   Charge voltage ‘absorption’ (V) / ‘float’ (V) 28.8 / 27.6 57.6 / 55.2 Battery types AGM / GEL / OPzV / Lead-Carbon / Li-ion / Flooded / Traction / Lithium Max AC charge current (A) 40 70 35 50 60 70 Temperature compensation Yes Solar Charge Controller   Max output current (A) 80 80 60 60 100 100 Maximum PV open circuit voltage (V) 150 150 250 250 250 250 MPPT voltage range (V) 40~145 40~145 65~245 Number of MPPT trackers 1 1 1 1 2 2 Maximum PV input current per tracker (A) 36 36 36 36 36 36 36 36 Maximum PV short circuit current per tracker (A) 40 40 40 40 40 40 40 40 Maximum PV power per tracker (W) 3600 3600 5200 5200 4400 4400 4400 4400 Charge voltage ‘absorption’ (V) / ‘float’ (V) 28.8 / 27.6 57.6 / 55.2 MPPT charger maximum efficiency 98% MPPT efficiency >99.5%   Protection a) output short circuit; b) overload; c) battery voltage too high; d) battery voltage too low; e) temperature too high; f) input voltage out of range General data AC Out1 Current (A) 32 32 32 32 50 50 Smart Port Current (A) N/A 50 Transfer time 2ms (<15ms in Weak AC source Mode)   Protection a) output short circuit; b) overload; c) battery voltage too high; d) battery voltage too low; e) temperature too high; f) input voltage out of range; g) input voltage ripple too high; h) Fan block General purpose com. Port RS485 (GPRS, WLAN optional) Programmable relay 1x (30Vdc/3A or 250Vac/3A) Operating temperature range -20˚C to 65˚C Relative humidity in operation 95% without condensation Altitude (m) 2000 Mechanical Data Dimension (mm) (max) 499x272x144 570*310*154 Net Weight (kg) 14 18 18 20 29 31 Cooling Forced fan Protection index IP21 Standards Safety EN-IEC 62477-1, EN-IEC 62109-1, EN-IEC 62109-2 EMC EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-11, EN 61000-3-12 TBB 3Kw datasheet TBB 3kw user manual TBB compatible batteries
