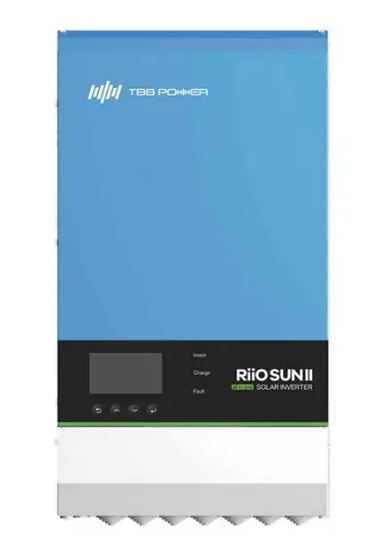

TBB 3kVA Riio Sun II 3KVA-M Hybrid Pure Sinewave Solar Inverter

TBB 3kVA Riio Sun II 3KVA-M Hybrid Pure Sinewave Solar Inverter is a powerful all in one solar inverter integrated with multiple functions, including a high-performance true sine wave inverter, a powerful battery charger, a MPPT charge controller rated 60A- 2000 watts, and a high-speed automatic transfer switch. Here are some of the key features of the TBB 3kVA Riio Sun II Hybrid Solar Inverter: 3kVA continuous output power 24V DC input voltage 60A maximum AC charge current 98% MPPT efficiency 91% maximum efficiency High-speed automatic transfer switch All-in-one, plug and play design for easy installation Transformer-based, easily withstand the initial surge current Versatile for solar off-grid, ESS, self-consumption and backup power system Support parallel and three-phase (RiiO Mate required) Support energy feeding back into grid Maximize self-consumption Optional to work without battery Auto restart when the PV or AC is recovering Higher PV open circuit voltage Higher PV charging power and current TECHNICAL PARAMETERS   Model RiiO Sun II 2KVA-M RiiO Sun II 3KVA-M RiiO Sun II 3KVA-S RiiO Sun II 4KVA-S RiiO Sun II 5KVA-S RiiO Sun II 6KVA-S Power Assist Yes AC input range 175~265 VAC (45~65 Hz) AC input Current (transfer switch) (A) 32 32 32 32 50 50 Inverter   Nominal battery voltage (V) / Input voltage (V) 24 / 21~34 48 / 42~68 AC output voltage (VAC) 220/230/240 ± 2% AC output Frequency (Hz) 50/60 ± 0.1% Harmonic distortion <2% Load Power factor 1.0 Cont. output power at 25°C (VA) 2000 3000 3000 4000 5000 6000 Max output power at 25°C (W) 2000 3000 3000 4000 5000 6000 Peak power (W) 4000 6000 6000 8000 10000 12000 Surge 300% Maximum efficiency 91% 91% 93% 93% 94% 94% Zero load power (W) 13 17 17 19 22 25 Charger   Charge voltage ‘absorption’ (V) / ‘float’ (V) 28.8 / 27.6 57.6 / 55.2 Battery types AGM / GEL / OPzV / Lead-Carbon / Li-ion / Flooded / Traction / Lithium Max AC charge current (A) 40 70 35 50 60 70 Temperature compensation Yes Solar Charge Controller   Max output current (A) 80 80 60 60 100 100 Maximum PV open circuit voltage (V) 150 150 250 250 250 250 MPPT voltage range (V) 40~145 40~145 65~245 Number of MPPT trackers 1 1 1 1 2 2 Maximum PV input current per tracker (A) 36 36 36 36 36 36 36 36 Maximum PV short circuit current per tracker (A) 40 40 40 40 40 40 40 40 Maximum PV power per tracker (W) 3600 3600 5200 5200 4400 4400 4400 4400 Charge voltage ‘absorption’ (V) / ‘float’ (V) 28.8 / 27.6 57.6 / 55.2 MPPT charger maximum efficiency 98% MPPT efficiency >99.5%   Protection a) output short circuit; b) overload; c) battery voltage too high; d) battery voltage too low; e) temperature too high; f) input voltage out of range General data AC Out1 Current (A) 32 32 32 32 50 50 Smart Port Current (A) N/A 50 Transfer time 2ms (<15ms in Weak AC source Mode)   Protection a) output short circuit; b) overload; c) battery voltage too high; d) battery voltage too low; e) temperature too high; f) input voltage out of range; g) input voltage ripple too high; h) Fan block General purpose com. Port RS485 (GPRS, WLAN optional) Programmable relay 1x (30Vdc/3A or 250Vac/3A) Operating temperature range -20˚C to 65˚C Relative humidity in operation 95% without condensation Altitude (m) 2000 Mechanical Data Dimension (mm) (max) 499x272x144 570*310*154 Net Weight (kg) 14 18 18 20 29 31 Cooling Forced fan Protection index IP21 Standards Safety EN-IEC 62477-1, EN-IEC 62109-1, EN-IEC 62109-2 EMC EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-11, EN 61000-3-12 TBB 3Kw datasheet TBB 3kw user manual TBB compatible batteries
