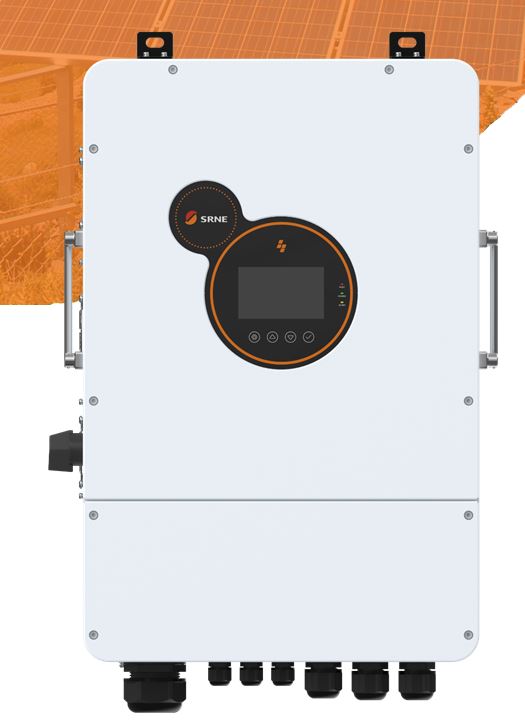

SRNE 12KW 48V Single phase Hybrid pure sinewave inverter (HESP48120S200-H)

SRNE 12KW 48V Single phase Hybrid pure sinewave inverter is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery. Finally, the stored energy can be released when the loads require it. The battery can also be charged by a diesel generator to ensure uninterrupted supply in the event of grid blackout. SRNE 12KW 48V Single phase Hybrid pure sinewave inverter  is  compatible with 48V storage batteries ranging from Lithium ion batteries, gel batteries, flooded batteries and AGM batteries □ It has 2 efficient, independent MPPT ports with a high MPPT voltage range of up to 450V □ Separate generator port □ Support AC-coupling □ Support time-slot function for peak-valley □ IP65 waterproof protection degree Excellent communication with lithium ion batteries TECHNICAL SPECIFICATIONS Model HESP4880S200-H HESP48100S200-H HESP48120S200-H AC OUTPUT（LOAD） Rated Output Power 8,800W 10,000W 12,000W Max. Output Power 17,600VA 20,000VA 24,000VA Rated Output Voltage 230Vac  ±5%（Single-Phase L N PE） Load Motor Capacity 5HP 6HP Rated Frequency 50/60Hz ±0.3 Switch Time 10ms（typical） AC OUTPUT（GRID） Rated Output Power 8,800W 10,000W 12,000W Max. Output Power 8,800VA 10,000VA 12,000VA Rated Output Current 38.2A 43.5A 52.2A Max. Output Current 40A 45.5A 54.4A Power Factor 0.8 leading/0.8 lagging THD <3% BATTERY Battery Type Lead-Acid / Li-ion / User-Define Rated Battery Voltage 48V Battery Volatge Range 40～60Vdc Max. Solar Charging Current 200A Max. Generator Charging Current 60A Max. Grid Charging Current 120A Max. Hybrid Charging Current 200A SOLAR INPUT No. Of MPPT 2 Max. Input Power 5.5kW 5.5kW 6.6kW 6.6kW Max. Input Current 22/22A Max. Short Circuit Current 37A/37A Max. Open Circuit Voltage 500Vdc 500Vdc MPPT Voltage Range 120~450Vdc GRID/GENERATOR INPUT Input Voltage Range UPS mode：170～280Vac；APL mode：90～280Vac Input Frequency Range 50/60Hz Bypass Overload Current 63A EFFICIENCY MPPT Tracking Efficiency 99.9% Max. Efficiency 97.5% European Efficiency 97%   GENERAL DATA Parallel Capacity 1～6 Units（More than 3 units in parallel can form a three-phase output） Dimension 670*440*220mm Humidity 0～100% Weight 37kg Cooling Method Fan Cooling Protection Degree IP65 Warranty 5 years Temperature -25～60°C, >45°C Derate Communication RS485/CAN/USB/Dry Contact External Module（Optional） Wi-Fi/GPRS Topology Transformerless Certificate IEC62109-1, IEC62109-2,EN61000-6-1, EN61000-6-3, FCC 15 class B,RoHS   PV Reverse Protection Yes Anti-Islanding Protection Yes Residual-Current Monitoring Yes Insulation Resistance Monitoring Yes Output Short-Circuit Protection Yes Output Over-Current Protection Yes Over-Voltage Protection AC type II/DC type III Surge Protection AC type II/DC type II     http://SRNE 12Kw single phase datasheet https://www.srnesolar.com/userfiles/files/2024/09/06/SRNE_HESP series_EU_48V_8~12kW_230V_Solar Storage Inverter_datasheet_1.1.pdf http://SRNE 12KW user manualhttps://www.srnesolar.com/userfiles/files/2024/09/06/SRNE_HESP series EU_48V_8-12kW_230V single phase_solar hybrid inverter_usermanual_V1.2.pdf
