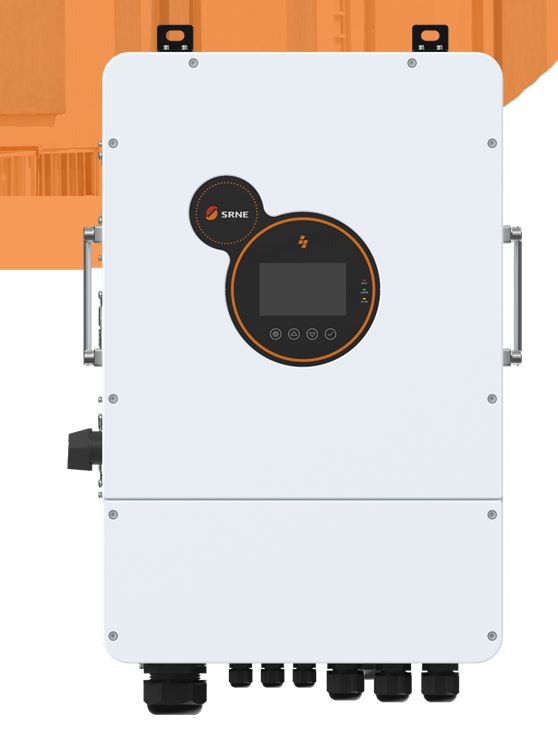

SRNE 12KW 48V 3 phase Hybrid pure sinewave inverter (HESP48120SH3)

SRNE 12KW 48V 3 phase Hybrid pure sinewave inverter (HESP48120SH3) is a hybrid 3 phase inverter rated 12Kw 48V. It supports 3 phase loads such as motors and heavy commercial washing machines that requires 3 phase power. The inverter is not limited to the aforementioned loads but rather any type of 3 phase, load as long as it does not exceed the rated inverter capacity which is 12Kw. It suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery. Finally, the stored energy can be released when the loads require it. The battery can also be charged by a diesel generator to ensure uninterrupted supply in the event of grid blackout. LCD Display. 48V low voltage battery, safe and reliable. 10ms fast transfer from on-grid to off-grid mode. It is equipped with RS485/CAN BMS port for Lithium Battery BMS communication. Support three-phase pure sine wave output Support time-slot function for peak-valley IP65 waterproof protection degree Compatible with 48Vstorage batteries 2 efficient, independent MPPT ports Separate generator port   TECHNICAL SPECIFICATIONS MODEL HESP4880SH3 HESP48100SH3 HESP48120SH3 AC OUTPUT Rated Output Power 8,000W 10,000W 12,000W Max. Output Power 16,000VA 20,000VA 24,000VA Rated Output Voltage 230/400 Vac（three-Phase） Load Motor Capacity 5HP 6HP Rated Frequency 50/60Hz ±0.3 Switch Time 10ms（typical） BATTERY Battery Type Li-ion / Lead-Acid / User Defined Rated Battery Voltage 48V Battery Volatge Range 40～60Vdc Max. Grid/Generator Charging Current 100A 120A 120A Max. Hybrid Charging Current 180A 220A 260A SOLAR INPUT No. Of MPPT 2 Max. Input Power 6,000W 6,000W 7,500W 7,500W 9,000W 9,000W Max. Input Current 22A 22A Max. Open Circuit Voltage 800Vdc 800Vdc MPPT Voltage Range 200-650Vdc/200-650Vdc GRID/GENERATOR INPUT Input Voltage Range Phase voltage 170~280V, Line voltage 305~485V Input Frequency Range 50/60Hz Bypass Overload Current 23.2A 29A 35A EFFICIENCY MPPT Tracking Efficiency 99.9% Max. Efficiency ≥92% European Efficiency 97.2% 97.5% 9   GENERAL DATA Parallel Capacity 1～6 Units Dimension 670*440*240mm Humidity 0～100% Weight 39kg Cooling Method Heat sink intelligent fan cooling Protection Degree IP65 Warranty 5 years Temperature -10~55℃, >45℃ Derate Communication RS485/CAN/USB/Dry Contact External Module（Optional） Wi-Fi/GPRS Topology Transformerless Certificate IEC62109-1, IEC62109-2, EN61000-6-1, EN61000-6-3, FCC 15 class B, RoHS The inverter has a number of protection which includes PV input current / power limiting protection, Anti-reverse charge protection at night, AC input over-voltage protection, AC input under-voltage protection, Battery over-voltage protection, Battery under-voltage protection, Battery over-current protection, AC output short-circuit protection, Heat sink over- temperature protection, inverter over-load protection, AC output reverse, Bypass over-current protection, Bypass phase inconsistency protection. http://SRNE 12KW 3 phase datasheet https://www.srnesolar.com/userfiles/files/2024/09/11/SRNE_HES series_Three-phase_8~12kW_EU_Solar Storage Inverter_datasheet_V1.0.pdf http://SRNE 12KW 3 Phase manualhttps://www.srnesolar.com/userfiles/files/2024/09/06/SRNE_HESP Series_8-12kW_US_Split phase_Solar hybrid inverter_user manual_V1.2.pdf
