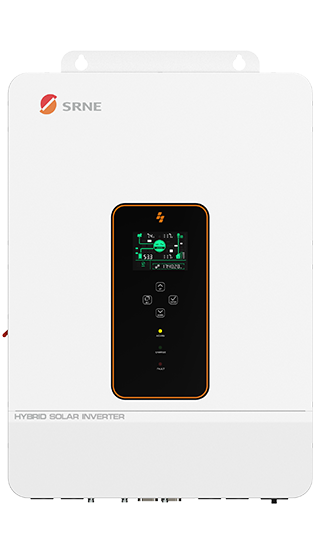

SRNE 10KW 48V hybrid pure sinewave inverter (ASF48100S200-H)

SRNE 10Kw 48V hybrid pure sinewave inverter with an inbuilt MPPT solar charge controller and high input voltage range of up to 500 vdc The inverter is compatible with 48V storage batteries ranging from lithium ion batteries, gel batteries, flooded batteries and AGM batteries. Excellent communication with lithium ion batteries It has 2 efficient, independent MPPT ports Aesthetically industrial design appearance Due to its high input voltage range, it has an input current rating of 22A 22A for each MPPT port It has a time slot function to save cost with peak valley. It can support up to 10Kw of power Two output modes i.e. mains bypass and inverter and inverter output can achieve uninterrupted power supply function Available in 4 charging modes: Only solar, mains priority, solar first mode and solar and mains hybrid charging mode. LCD screen design and 3 LED indicator lights dynamically display system data and operation states With power saving function, it can reduce no load losses. The inverter has PV input current limiting protection, PV input over-voltage protection, PV night reverse current protection ,AC input over- voltage protection, AC input under-voltage protection, battery over-voltage protection, battery under-voltage Protection, battery over-current protection, AC output short-circuit protection, heat sink over-temperature protection、 Inverter over-load protection.                                                                   TECHNICAL SPECIFICATIONS MODEL ASF4880S180-H ASF48100S200-H INVERTER OUTPUT Rated Output Power 8,000W 10,000W Max. Output Power 16,000VA 20,000VA Rated Output Voltage 230Vac, Single-Phase Load capacity of Motors 5HP 6HP Rated AC Frequency 50/60Hz Waveform Pure sine wave Output Mode Off-grid (default) / power the load without battery Switch Time 10ms（typical） BATTERY Battery Type Li-ion / Lead-acid / User-defined Rated Battery Voltage 48V Battery Volatge Range 40～60Vdc Max. Solar Charging Current 180A 200A Max. Grid/Generator Charging Current 100A 120A Max. Hybrid Charging Current 180A 200A SOLAR INPUT No. Of MPPT 2 Max. PV Array Power 5,500W 5,500W Max. Input Current 22A 22A Max. Open Circuit Voltage 500Vdc 500Vdc MPPT Voltage Range 125~425Vdc GRID/GENERATOR INPUT Input Voltage Range 90~275Vdc Input Frequency Range 50/60Hz Bypass Overload Current 63A EFFICIENCY MPPT Tracking Efficiency 99.9% Max. Efficiency 92% GENERAL DATA Dimension 620*445*130mm Noise <60dB Weight 27kg Cooling Method Built-in fan Protection Degree IP20 Indoor Only Warranty 2 years Temperature -10-55°C, >45°C Derate Communication RS485/CAN/USB/Dry Contact External Module（Optional） Wi-Fi/GPRS Topology Transformerless Certificate IEC62109-1/IEC62109-2/UL1741/RoHs/EN61000-6-1/EN61000-6-3/FCC 15 class B PROTECTION   Has PV input current limiting protection, PV input over-voltage protection, PV night reverse current protection ,AC input over- voltage protection, AC input under-voltage protection, battery over-voltage protection, battery under-voltage Protection, battery over-current protection, AC output short-circuit protection, heat sink over-temperature protection、 Inverter over-load protection.
