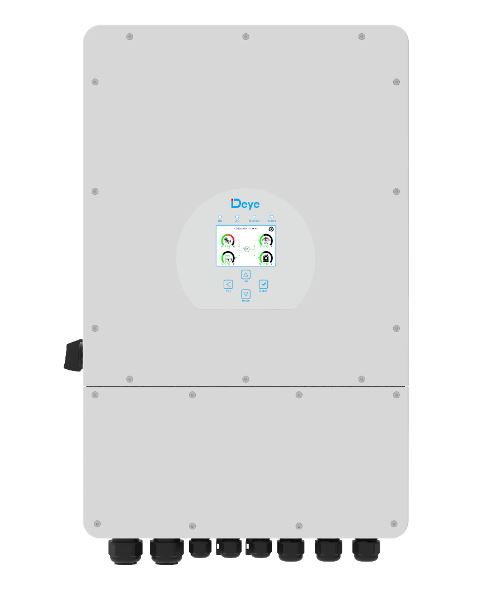

Deye 5Kw single phase 48V hybrid inverter SUN-5K-SG04LP3-EU

Deye 5Kw single phase 48V hybrid inverter SUN-5K-SG04LP3-EU available in Kenya-In stock. Deye 5kw 48v Hybrid Solar Inverter single phase Phase hybrid inverter, is suitable for residential and commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence.   During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 3.6/6K-SG. Finally, the stored energy can be released when the loads require it. key features include: Colorful touch LCD, IP65 protection degree 6 time periods for battery charging/discharging Max. charging/discharging current of 120A Frequency droop control, Max.16pcs parallel DC couple and AC couple to retrofit existing solar system Support storing energy from diesel generator TECHNICAL PARAMETERS Model SUN-3.6K-SG01/03LP1-EU SUN-5K-SG01/03LP1-EU Battery Input Data Battery Type Lead-acid or Lithium-ion Battery Voltage Range (V) 40~60V Max. Charging Current (A) 90A 120A Max. Discharging Current (A) 90A 120A Charging Curve 3 Stages / Equalization External Temperature Sensor Optional Charging Strategy for Li-Ion Battery Self-adaption to BMS PV String Input Data Max. DC Input Power (W) 4680W 6500W PV Input Voltage (V) 370V (100V~500V) MPPT Range (V) 125~425V Full Load DC Voltage Range 240~425V Start-up Voltage (V) 150V PV Input Current (A) 13A 13A No.of MPPT Trackers 2 No.of Strings Per MPPT Tracker 1 1 AC Output Data Rated AC Output and UPS Power (W) 3600W 5000W Max. AC Output Power (W) 3960W 5500W Peak Power (off grid) 2 times of rated power, 10 S AC Output Rated Current (A) 15.7A 21.7A Max. AC Current (A) 18A 25A Max. Continuous AC Passthrough (A) 35A Power Factor 0.8 leading to 0.8 lagging Output Frequency and Voltage 50/60Hz; 220/230 / 240Vac (single phase) Grid Type Single Phase Current Harmonic Distortion THD<3% (Linear load<1.5%) Efficiency Max. Efficiency 97.60% Euro Efficiency 96.50% MPPT Efficiency 99.90% Protection PV Input Lightning Protection Integrated Anti-islanding Protection Integrated PV String Input Reverse Polarity Protection Integrated Insulation Resistor Detection Integrated Residual Current Monitoring Unit Integrated Output Over Current Protection Integrated Output Shorted Protection Integrated Output Over Voltage Protection Integrated Surge protection DC Type II / AC Type II Certifications and Standards Grid Connection Standard EN50549-1, CEI 0-21, IEC61727, IEC62116, IEC60068, IEC61683, ABNT NBR 16149, ABNT NBR 16150, AS4777.2, VDE 4105, XP C15-712-3, RD1699, UNE 206006 IN, UNE 206007-1 IN Safety EMC / Standard IEC62040-1,IEC62109-1/-2,IEC61000-6-1,IEC61000-6-3,IEC61000-3-11, IEC61000-3-12, IEC61000-4-16,IEC61000-4-18,IEC61000-4-29 General Data Operating Temperature Range (℃) -25~60℃, >45℃ Derating Cooling Smart cooling Noise (dB) <30 dB Communication with BMS RS485; CAN Weight (kg) 20.5 Size (mm) 330W×580H×232D Protection Degree IP65 Installation Style Wall-mounted Warranty 5 years Deye 5kW 48V 3 phase hybrid inverter datasheet Deye 5Kw 48V 3 phase inverter manual
