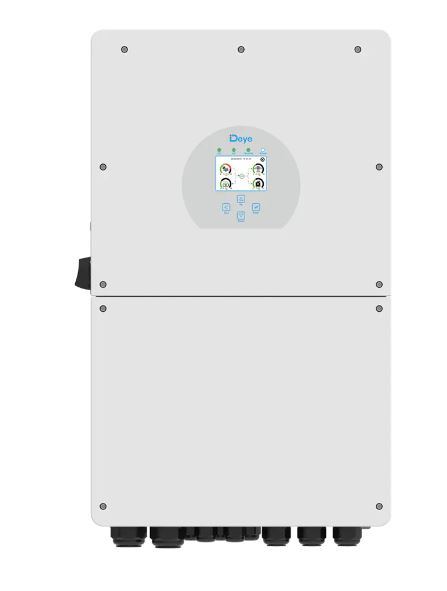

DEYE 20Kw 3 phase hybrid inverter 2MPPT High voltage (SUN-20K-SG01HP3-EU-AM2)

DEYE 20Kw 3 phase hybrid inverter 2MPPT High voltage (SUN-20K-SG01HP3-EU-AM2) is a high voltage inverter with a wide range of application in both domestic and average commercial use. This inverter can work with or without battery thus maximizing on the solar energy. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via the inbuilt MPPT charge controller. Finally, the stored energy can be released when the loads require it. The above function of providing solar energy to the loads is known as ‘Load Priority’ which can be changed to ‘battery priority’ so that the inverter gives priority in charging the battery through the solar energy and the excess supplied to the loads. KEY PARAMETERS FOR DEYE 20KW 3 PHASE HIGH VOLTAGE INVERTER INCLUDE: 100% unbalanced output, each phase AC couple to retrofifit existing solar system *Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel Max. charging/discharging current of 50A High voltage battery, higher efficiency 6 time periods for battery charging/discharging Support storing energy from diesel generator TECHNICAL SPECIFICATIONS    Protection standards Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection    Certifications and Standards   Grid Regulation                                                            IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 Safety EMC / Standard  General Data                                                 Operating Temperature Range (℃) IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2   -40-60℃, >45℃ Derating Cooling Free Cooling Smart Cooling Noise (dB) ≤55 dB Communication with BMS CAN Weight (kg) 30.5 Cabinet Size (WxHxD mm) 408×638×237 (Excluding Connectors and Brackets) Protection Degree IP65 Installation Style Wall-mounted Warranty 5 Years (10 Years Optional) Deye 20Kw 3 phase inverter datasheet Deye 20Kw 3 phase inverter manual           Model SUN-5K -SG01HP3-EU-AM2 SUN-6K -SG01HP3-EU-AM2 SUN-8K -SG01HP3-EU-AM2 SUN-10K -SG01HP3-EU-AM2 SUN-12K -SG01HP3-EU-AM2 SUN-15K -SG01HP3-EU-AM2 SUN-20K -SG01HP3-EU-AM2 SUN-25K -SG01HP3-EU-AM2 Battery Input Data Battery Type Lithium-ion Battery Voltage Range(V) 160-700 Max.Charging Current(A) 30 30 37 50 Max.Discharging Current(A) 30 30 37 50 Charging Strategy for Li-ion Battery Self-adaption to BMS Number of battery input 1 PV String Input Data Max. PV Access Power (W) 10000 12000 16000 20000 24000 30000 40000 50000 Max DC Input Power（W） 8000 9600 12800 16000 19200 24000 32000 40000 Max DC Input Voltage（V） 1000 Start-up Voltage（V） 180
