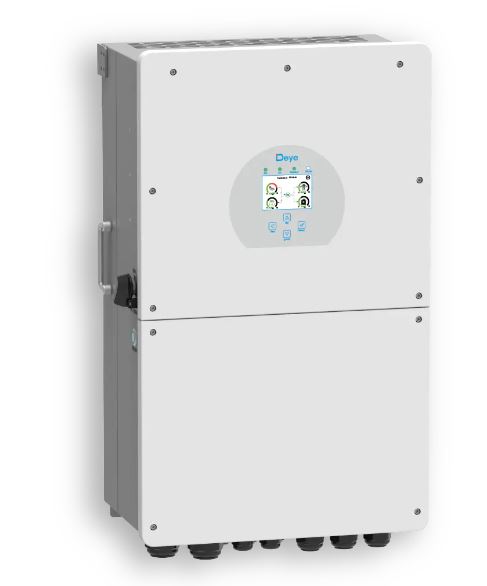

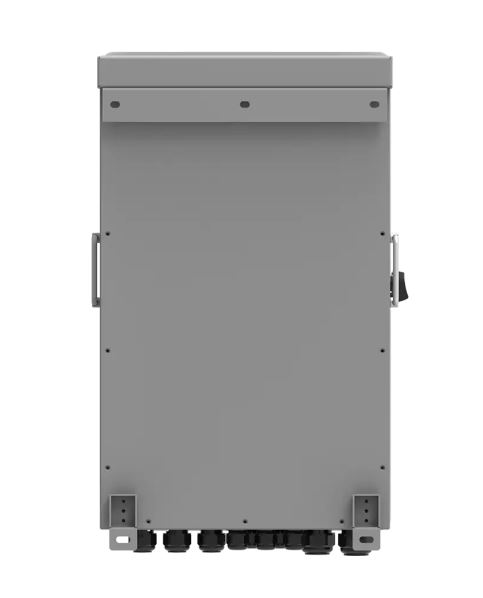

Deye 16Kw 48V single phase 3 MPPT hybrid inverter SUN-16K-SG01LP1-EU

Deye 16Kw 48V single phase 3 MPPT hybrid inverter SUN-16K-SG01LP1-EU is a multifunctional hybrid inverter  suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the will charge the battery via the inbuilt 3 MPPT solar charge controller.  Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator or the available national grid, to ensure uninterrupted supply in the event of grid blackout. It equipped with RS485/CAN port for battery communication. Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs. Setting parameters and FW update remotely, which makes PV plant O&M easier. Other features include: Colorful touch LCD, IP65 protection degree which means it can be installed externally or internally. it withstands rain and sunshine. 6 time periods for battery charging/discharging Max. charging/discharging current of 290A Support storing energy from diesel generator AC couple to retrofifit existing solar system Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel TECHNICAL PARAMETERS Model SUN-12K-SG01LP1-EU SUN-14K-SG01LP1-EU SUN-16K-SG01LP1-EU Battery Input Data Battery Type Lead-acid or Lithium-ion Battery Voltage Range(V) 40-60 Max.Charging Current(A) 220 250 290 Max.Discharging Current(A) 220 250 290 Charging Strategy for Li-ion Battery Self-adaption to BMS Number of battery input 2 PV String Input Data Max. PV Access Power (W) 24000 28000 32000 Max DC Input Power（W） 19200 22400 25600 Max DC Input Voltage（V） 500 Start-up Voltage（V） 125 MPPT Voltage Range（V） 150-425 Rated DC Input Voltage(V) 370 Max Input Short-Circuit Current（A） 44 44 44 Max Operating PV Input Current（A） 26 26 26 No.of MPP Trackers/No.of String Per MPP Tracker 3/2 2 2 AC Input/Output Data Rated AC Input/Output Active Power（W） 12000 14000 16000 Max AC Input/Output Apparent Power （VA） 13200 15400 17600 Peak Power (off-grid)（W） 2 times of rated power,10s Rated AC Input/Output Current（A） 54.5/52.2 63.6/60.9 72.7/69.6 Max AC Input/Output Current（A） 60/57.4 70/67 80/76.5 Max Continuous AC Passthrough (grid to load)（A） 100 Rated Input/Output Voltage/Range(V) 220V/230 0.85Un-1.1Un Grid Connection Form L N PE Rated Input/Output Grid Frequency/Range 50/45-55, 60/55-65 Power Factor Adjustment Range 0.8 leading-0.8lagging Total Current Harmonic Distortion THDi <3% (of nominal power) DC Injection Current <0.5%ln Efficiency Max Efficiency 97.6% Euro Efficiency 96.5% MPPT Efficiency ＞99% Equipment Protection Integrated DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level Surge Protection Level TYPE II(DC),TYPE II(AC) Interface Communication Interface RS485/RS232/CAN Monitor Mode GPRS/WIFI/Bluetooth/4G/LAN(optional) General Data Operating Temperature Range -40 to 60℃, >45℃ Derating Permissible Ambient Humidity 0~100% Permissible Altitude 2000m Noise ＜50 dB(A) Ingress Protection(IP) Rating IP 65 Inverter Topology Non-Isolated Over Voltage Category OVC II(DC),OVC III(AC) Cabinet size（W*H*D）[mm] 464*763*282（Excluding connectors and brackets） Weight[kg] 52 Warranty 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy Type Of Cooling Intelligent air cooling Grid Regulation IEC 61727,IEC 62116,NRS 097 Safety EMC/Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 Deye 16Kw Inverter datasheet Deye 16Kw single phase inverter manual
