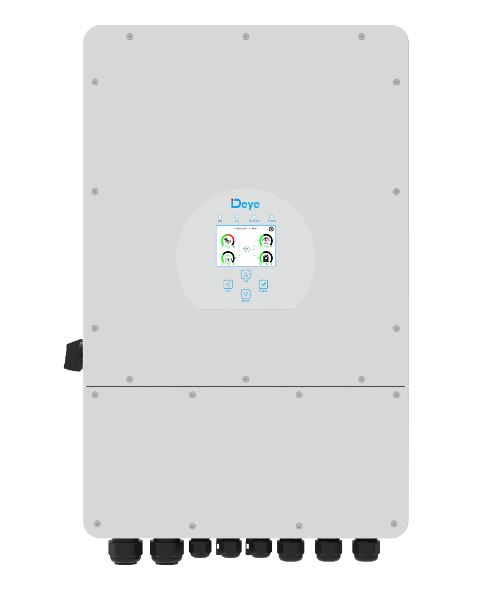

Deye 12kW 48v Hybrid Solar Inverter 3 Phase SUN-12K-SG04LP3-EU

Deye 12kW 48v Hybrid Solar Inverter 3 Phase SUN-12K-SG04LP3-EU is a low voltage inverter with a wide range of application in both domestic and light commercial use. This inverter can work with or without battery thus maximizing on the solar energy. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 3.6/6K-SG. Finally, the stored energy can be released when the loads require it. DEYE 3 PHASE UNIQUE FEATURES 100% unbalanced output, each phase; Max. output up to 50% rated power AC couple to retrofifit existing solar system Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel Max. charging/discharging current of 240A Support storing energy from diesel generator 48V low voltage battery, transformer isolation design 6 time periods for battery charging/discharging TECHNICAL SPECIFICATIONS Model SUN-8K-SG04LP3 SUN-1OK-SG04LP3 SUN-12K-SG04LP3 Battery Input Data Battery Type Lead-acid or Lithium-ion Battery Voltage Range (V) 40~60 Max. Charging Current (A) 190A 210A 240A Max. Discharging Current (A) 190A 210A 240A External Temperature Sensor Yes Charging Curve 3 Stages / Equalization Charging Strategy for Li-Ion Battery Self-adaption to BMS PV String Input Data Max. DC Input Power (W) 1040 13000 15600 Rated PV Input Voltage (V) (150~800) Start-up Voltage (V) 150V MPPT Voltage Range (V) 200~650 Full Load DC Voltage Range 200~650 PV Input Current (A) 26 13 Max. PV ISC (A) 26 13 No.of MPPT Trackers 2 No.of Strings Per MPPT Tracker 2 1   AC Input/Output Data Rated AC Input/Output Active Power (W)                  5000 6000 8000 10000 12000 Max. AC Input/Output Apparent Power (VA)     5500 6600 8800 11000 13200 Rated AC Input/Output Current (A)                        7.6/7.2 9.1/8.7 12.1/11.6 15.2/14.5 18.2/17.4 Max. AC Input/Output Current (A)                           8.4/8 10/9.6 13.4/12.8 16.7/15.9 20/19.1   Efficiency Max. Efficiency 97.60% Euro Efficiency 96.50% MPPT Efficiency 99.90% Protection Integrated Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection Over Voltage Category DC Type II / AC Type Ⅲ Certifications and Standards Grid Regulation IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 Safety EMC / Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 General Data Operating Temperature Range (℃) -40~60℃, >45℃ Derating Cooling natural cooling Noise (dB) ≤30 dB Communication with BMS RS485; CAN Weight (kg) 20.5 Cabinet Size (WxHxD mm) 330×580×232 (Excluding Connectors and Brackets) Protection Degree IP65 Installation Style Wall-mounted Warranty 5 Years (10 Years Optional) Deye 5kw 48v Hybrid Solar Inverter SUN-5K-SG03LP1-EU datasheet   Deye 12kw 3 phase phase datasheet Deye 12kw 3 phase inverter manual Deye 5Kw single phase inverter- compatible batteries
