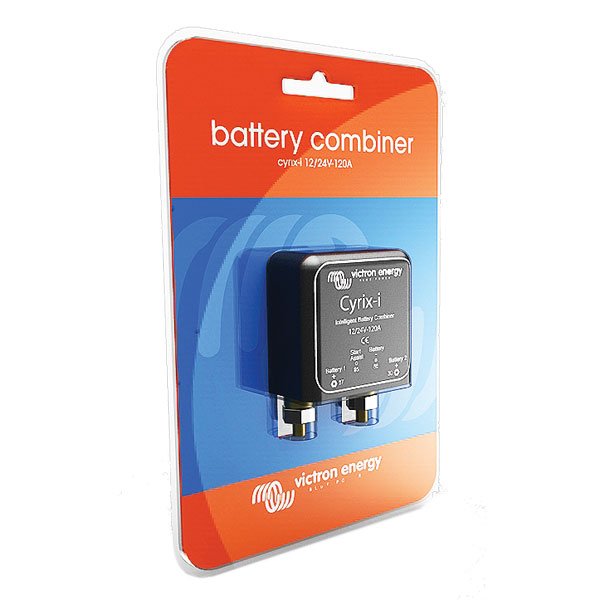

VICTRON CYRIX 12/24-120A BATTERY COMBINER

Activates second battery charging when first battery is above 12.8v. Disconnects automatically when first battery is decreased below 12.8v. Cyrix-i battery combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased. The Cyrix-i battery combiner is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a preset voltage (indicating that the battery is being charged), and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). SPECIFICATION Continuous current (A):120A Cranking rating (5 Seconds):180A Connect voltage:From 13V to 13.8V and 26V to 27.6V with intelligent trend detection Disconnect:From 11V to 12.8V and 22V to 25.7V with intelligent trend detection Current consumption when open:<4mA Start Assist:Yes (Cyrix remains engaged during 30 seconds) Protection Category:IP54 Weight (Kg):0.11 Dimensions (mm) H x W x D:46 x 46 x 80 Download Product Specification Delivery time 3-5 days on all orders
