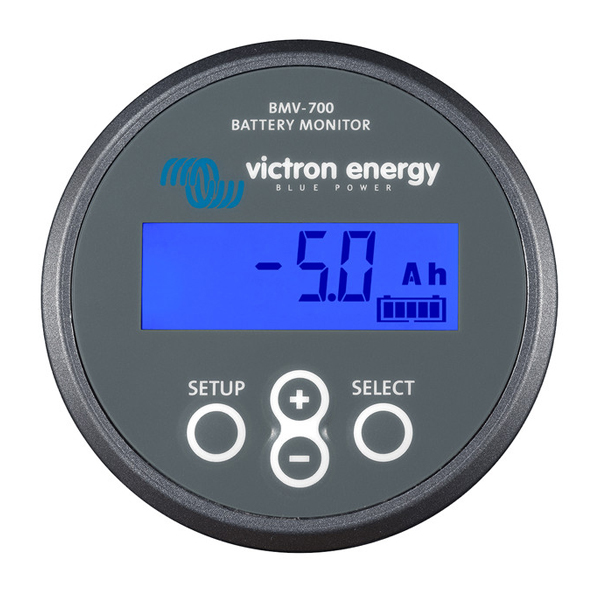

Victron BMV-700 Battery Monitor

VICTRON BMV-700 BATTERY MONITOR: The BMV-700 – Victrons newest high precision battery monitor The essential function of a battery monitor is to calculate ampere-hours consumed and the state of charge of a battery. Ampere-hours consumed are calculated by integrating the current flowing in or out of the battery. Features: Highest resolution: 10mA (0,01A) with 500A shunt. Lowest current consumption: 1mA. Easiest to wire: the BMV-700 comes with shunt, 10 meter RJ 12 UTP cable and 2 meter battery cable with fuse. No other components needed. Easiest to install: separate front bezel for square or round appearance; ring for rear mounting and screws for front mounting. Information & Alarms: Battery voltage (V) Battery charge/discharge current (A) Ampere-hours consumed (Ah) State of charge (%) Time-to-go at the current rate of discharge Visual and audible alarm: over- and under voltage, and/or battery discharged Download Battery Monitor Installation SPECIFICATION Power Supply Voltage Range: 9.5 – 90 VDC Current Draw, Back Light Off: <4 mA Input Voltage Range (VDC): 9.5 – 95 VDC Battery Capacity (Ah): 20-9,999 Operating Temp Range: -20 50°C (0 – 120°F) Communication Port: Yes Potential Free Contacts: 60V/1A (N/O) Dimensions: Front: 63mm Diameter Body: 52mm Diameter Body Depth: 31mm Front Bezel Dimensions: 69 x 69mm ACCESSORIES Shunt (Included): 500 A / 50 mV Cables (Included):  10m 6 Core UTP Computer Interface: Optional Delivery time 3-5 days on all orders
