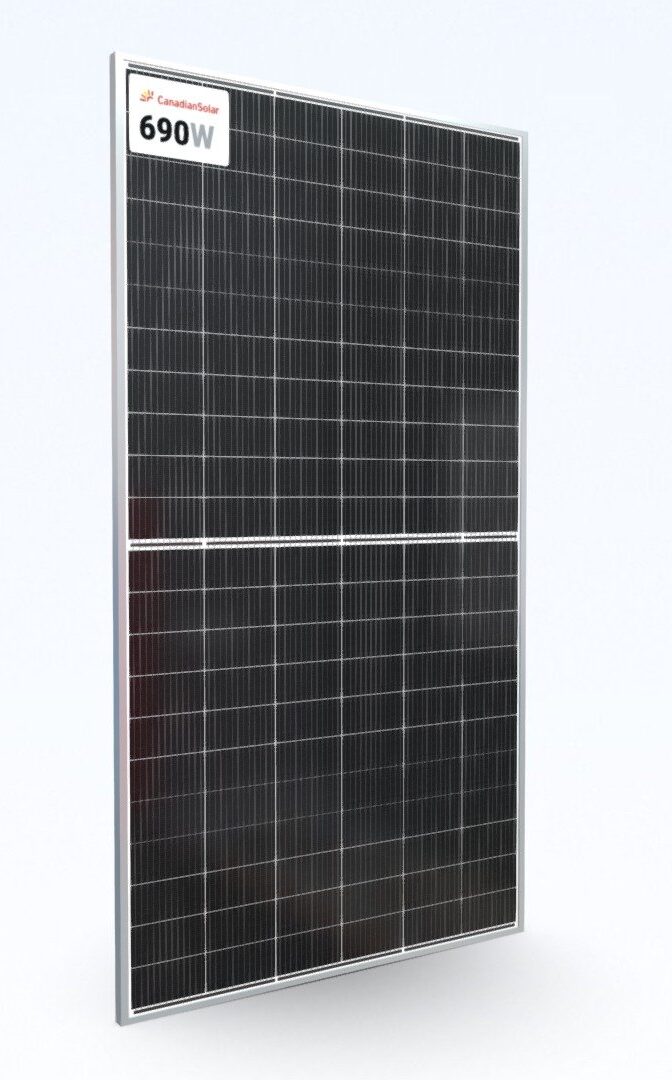

Canadian TOPCON N-Type Bifacial 690watt Solar Panel

Key Specifications Maximum Power Output (Pmax): 690 W Module Efficiency: 22.2% Open Circuit Voltage (Voc): 47.5 V Short Circuit Current (Isc): 18.39 A Voltage at Maximum Power (Vmp): 39.6 V Current at Maximum Power (Imp): 17.43 A Cell Type: N-Type TOPCon Monocrystalline Cell Configuration: 132 half-cut cells (2 × 66) Module Dimensions: 2384 × 1303 × 33 mm Weight: 37.8 kg Front Glass: 2.0 mm heat-strengthened glass with anti-reflective coating Frame: Anodized aluminum alloy Junction Box: IP68 rated with three bypass diodes Connector Type: MC4 or T6
